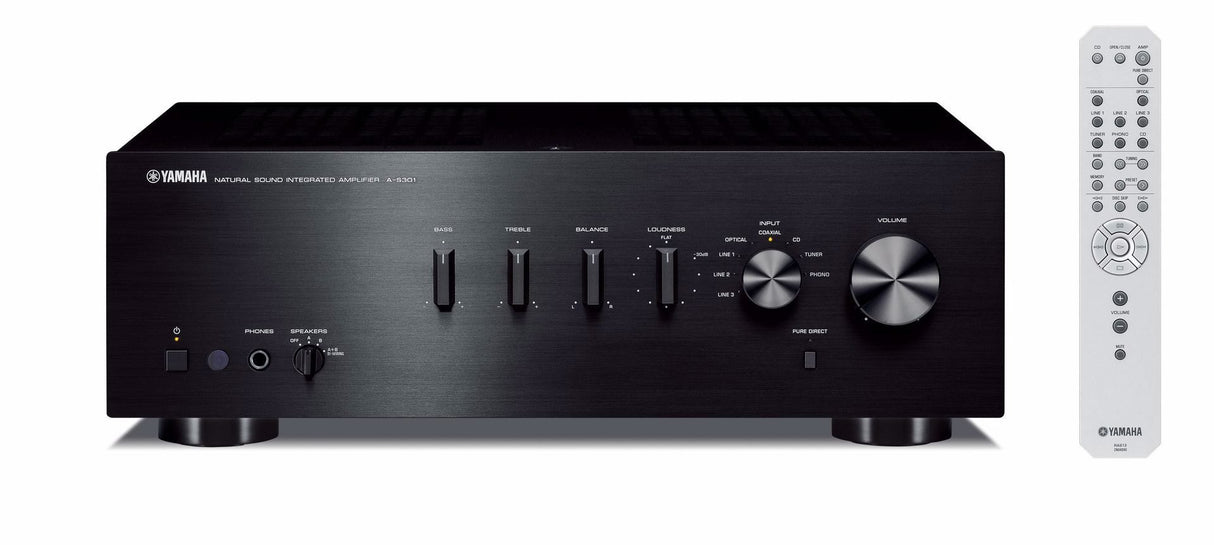

Yamaha A-S301 Integrated Amplifier with DAC

The Yamaha A-S301 Stereo Amplifier stands out as a high-quality integrated amplifier, employing ToP-ART (Total Purity Audio Reproduction Technology) and custom components to deliver impeccable sound fidelity. This amplifier offers exceptional sonic performance and minimal signal interference, thanks to its unique I/O Direct Symmetrical Design, ART Base (Anti-Resolution and Tough), and custom-made power transformer, all at an entry-level price. It's an excellent choice for novice audiophiles or anyone looking for an easy system setup.

Featuring an RMS power output of 60W per channel, this amplifier delivers distinct and precise sound. Alongside its impressive audio capabilities, the A-S301 incorporates digital audio inputs, allowing seamless connection to your TV or Blu-ray player, in addition to various analogue ports. User-friendly functions like Pure Direct Mode and Continuous Variable Loudness Control enable effortless audio adjustments, tailored to your preferences. With the Yamaha A-S301 Stereo Amplifier, relish in high-powered, clear, and exceptional sound quality.

High-Quality Circuit Design for Superior Sound:
Yamaha's ToP-ART Design and ART Base guarantee optimum sound quality by ensuring a direct and straightforward processing and transmission of the audio signal. The ToP-ART technology features an I/O (input to output) Direct Symmetrical Design, arranging left and right channels in a straight, symmetrical layout to maintain signal purity. Additionally, the ART (Anti-Resonance and Tough) Base bottom chassis and solid centre bar offer robust support and vibration damping, contributing to rich audio reproduction with abundant musicality.

Outstanding Audio Performance:
The amplifier boasts a custom-made power transformer, custom-made block capacitors, two direct signal path speaker relays, a one-point grounding system, aluminium-extruded heat sinks, and other high-quality parts designed to effortlessly handle demanding audio signal conditions. The selection and quality of individual components, along with their synergy, significantly influence the sound quality of any component. Yamaha utilises only top-tier parts, meticulously chosen and tested for their performance.

Pure Direct Mode for Enhanced Sound Purity:
Activating the Pure Direct Switch bypasses the control circuits for bass and treble, balance, and the back buffer amp. This enhancement in sound quality maintains full output capacity. By shortening the signal route, sound purity is improved, effectively reproducing even the most delicate musical nuances.

Specifications	Details
Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz)	60 W + 60 W (0.019% THD)
Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)	95 W + 95 W
High Dynamic Power/Channel (8/6/4/2 ohms)	100/120/140/150 W
Damping Factor	210
Frequency Response	10 Hz-100 kHz +/-1.0 dB
Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz)	0.019% (50 W/8 ohms)
Signal-to-Noise Ratio (CD)	99dB (input shorted, 200 mV)
Audio In / Out	8 / 2
Digital Input	Yes (optical / coaxial)
Subwoofer Out	Yes
DC out	Yes
Pure Direct	Yes
ToP-ART	Yes
Standby Power Consumption	0.5W
Power Management (Auto Power Standby)	Yes
Dimensions (W x H x D)	435 x 151 x 387 mm; 17-1/8” x 6” x 15-1/4”
Weight	9.0 kg; 19.8 lbs.
