Mission 778X Integrated Amplifier

The Mission 778x Integrated Amplifier presents an array of connectivity options delivering precise and refined audio quality. With coaxial and optical inputs, it allows direct connections to digital devices alongside three studio-grade RCA inputs, including a moving magnet (MM) phono input for turntables, ensuring exceptional analogue connectivity. Additionally, Bluetooth compatibility enables wireless music streaming from smart devices in aptX and AAC codecs.

Employing a Class-AB power amplifier design, the 778x houses a robust 200VA toroidal transformer for powerful sound delivery. Its outstanding preamp section optimises music, and the high-resolution onboard DAC enhances digital audio using the ES9018K2M chipset, supporting a sampling rate of up to 384kHz (PCM) and DSD256. The unit's rotary controls facilitate easy volume adjustments and source selection, complemented by illuminating LEDs indicating current settings.

Integrated Amplifier
The Mission 778x utilises a Class-AB design, ensuring effective sound quality with low distortion levels. Equipped with a low-noise 200VA toroidal transformer and a 2x15000uF reservoir capacity, it delivers a dual-channel power output of up to 65W each. The preamp section offers immersive sound with a low THD rating and a frequency response of 20Hz-20kHz, catering to various music genres. Additionally, it features a high-quality headphone amplifier, ensuring remarkable audio quality through high-speed output signal transition.

High-Performing DAC and Inputs
Connect digital devices through USB, Coaxial, and dual Optical inputs, while three RCA inputs accommodate analogue devices like turntables. With Bluetooth 5.0 compatibility, enjoy streaming playlists from Spotify and Apple Music on smart devices. The built-in DAC, powered by the ES9018K2M chipset and 32-bit HyperStream architecture with Time Domain Jitter Eliminator, provides immersive audio with sampling rates of up to 384kHz (PCM) and DSD256.

Sleek Design
Its dependable, compact design ensures easy placement in any HiFi cabinet while adding a stylish touch to home decor. The 778x is equipped with two robust rotary controls for volume management and input selection, accompanied by white LED indicators to display current settings.

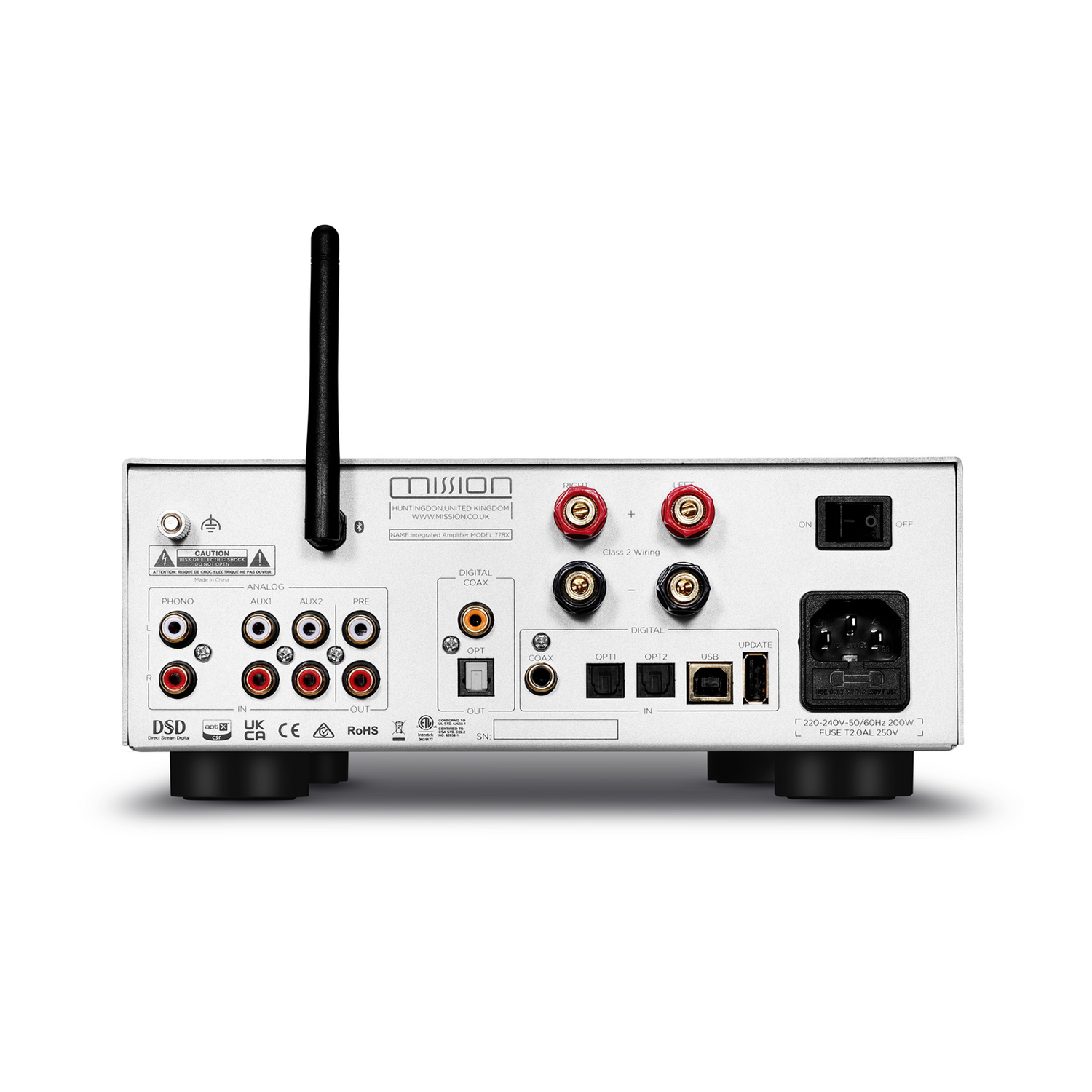

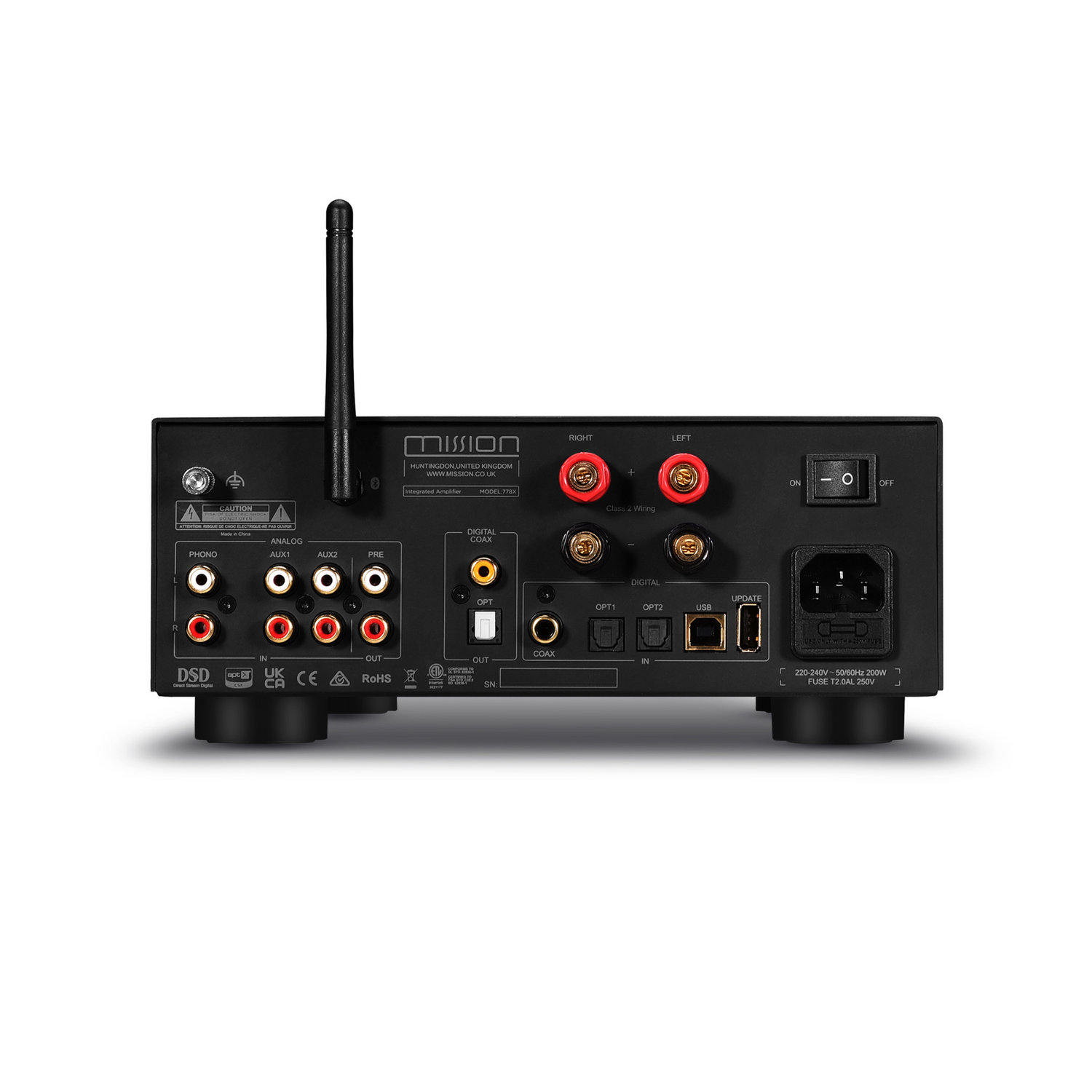

Inputs	1 x Coaxial 2 x Toslink Optical 1 x PC USB 1 x Bluetooth (aptX/AAC) 2 x AUX 1 x RCA (Phono MM)
Outputs	1 x Coaxial 1 x Toslink Optical 1 x RCA (PRE Out)
Sampling Frequency	Optical / Coaxial: 44.1kHz-192kHz; PC USB 44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256
Dimensions (mm) (W x H x D)	236 x 98 x 380.6 mm
Carton Size (mm) (W x H x D)	450 x 392 x 175 mm
Net Weight	6.3kg
Available colours	Black / Silver
Power requirements (depending on region)	220-240V, 50/60Hz; 100-120V, 50/60Hz
