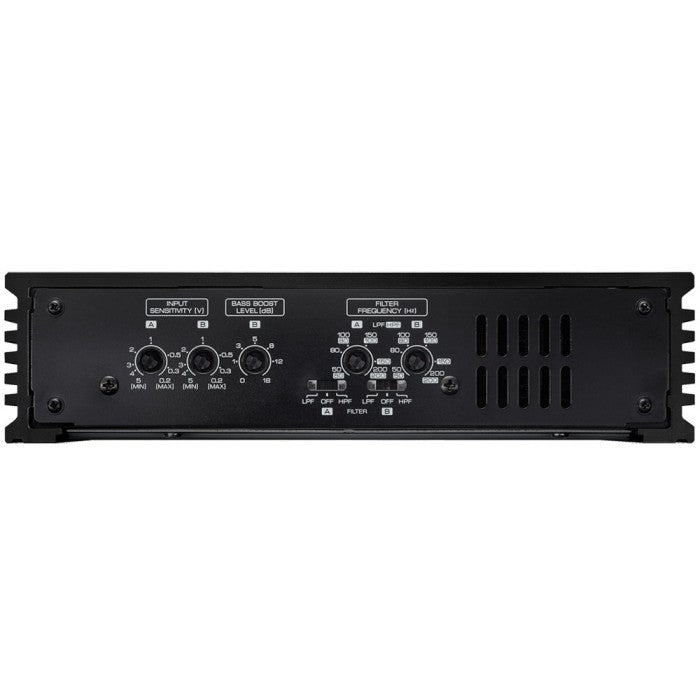

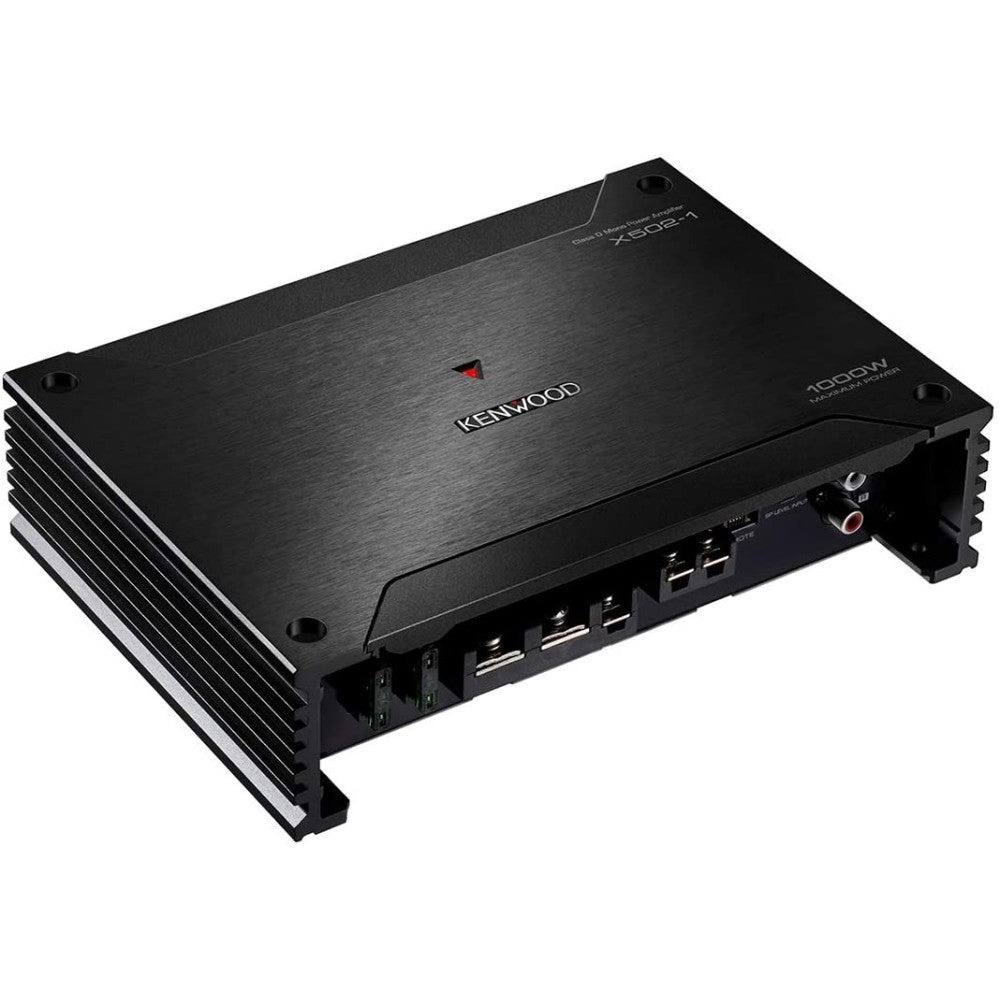

Kenwood X502-1 X-Series, Class D Mono-Channel Power Amplifier

XSeries, Class D MonoChannel Power Amplifier - Kenwood Car Audio X502-1

X Series Amplifiers provide a powerful solution in a compact design ideal for upgrading your car audio system. The reliability of the thermal management system instantaneously controls amplitude and ensures uninterrupted sound reproduction when high output drives up temperatures. Experience the luxury of choice afforded by Kenwood's compact engineering.

This advanced negative feed back circuit improves damping factor and increases accuracy and sound quality. When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it won't stop moving once it's in motion. This extra movement (sound) creates a type of distortion that's not part of the original signal. The negative feedback circuit senses this unwanted movement and sends out an opposite pulse to stop the speaker like an electronic brake.

The X302-4 is small in size but with its tremendous sound output, it is extremely versatile. It can be installed in vehicles where space is limited and is perfect for vehicle owners who don't want to sacrifice cargo room or who prefer hidden installations.

• Class D Amplifier Yes
• Full Range Digital Amplifier Yes
• Load Capability 2Ω Stable
• Rated power output (4Ω) 300W x 1 (4Ω)
• Rated power output 500W x 1 (2Ω)
• CEA-2006 Compliant Yes
• Low-pass Filter Yes
• Switched Mode Power supply Yes, with Power MOS-FET
• Single Side Terminals Yes
• Chassis Extruded aluminum het sink design

• Rated power output (4Ω, 14,4V) 300W x 1 (20Hz ~ 200Hz, 1%THD)
• Rated power output (2Ω, 14,4V) 500W x 1 (100Hz, 1%THD)
• Rated power output (CEA-2006) 300Watts RMS x 1 at 4 ohms and 1% THD
• Low-pass Filter 50~200Hz (-24dB/oct)
• Bass Boost Circuit 40Hz, 18dB (B-Channel)
• RCA Input Sensitivity 0.2 ~ 5V
• Input Impedance 10kΩ
• Signal to Noise Ratio 100dB
• Signal to noise ratio (CEA-2006) 85dBa (Reference: 1 Watt into 4 Ohms)
• Frequency response (+0dB, -1dB) 20Hz ~ 200Hz
• Operating voltage 14.4V (11V ～ 16V allowable)
• Maximum current consumption 25A
• Installation Size (WxHxD) 213 x 53 x 149 (mm)
• Weight 1.5kg
• Weight 1.4kg
