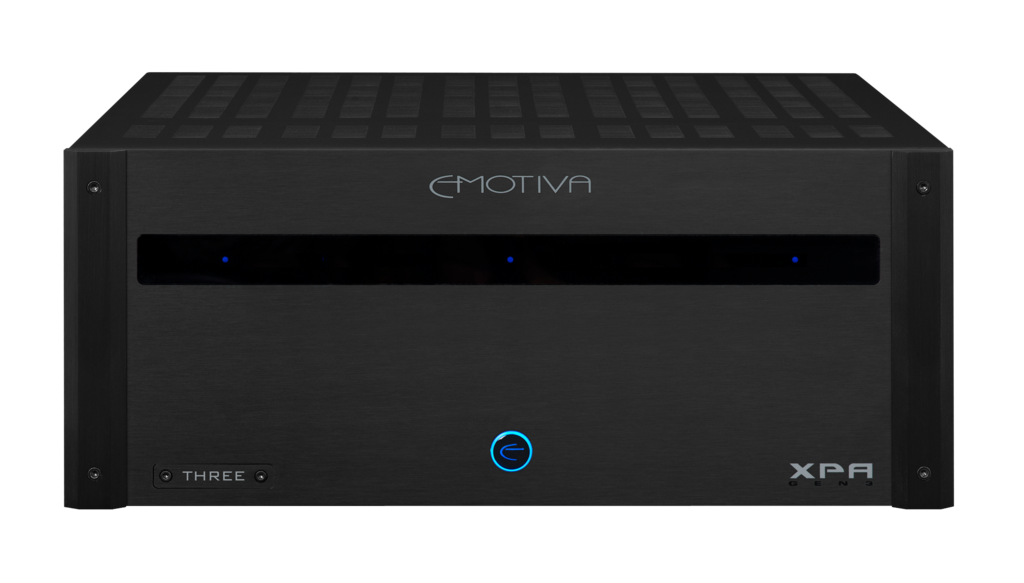

Emotiva XPA-3 G3 3 Channel Power Amplifier

Emotiva  |  SKU: 76674
Model# XPA-3
£1,699.00
  • Free & Next-Day Delivery Available

    Free & Next-Day Delivery Available

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

Description

Three Channels for Exceptional Sound

The Emotiva XPA-3 Gen 3 is a powerhouse of a 3-channel amplifier. It is perfectly suited to drive the Left, Centre, and Right channels in your 3.1, 5.1, or larger home cinema setup. By directing ample power and top-notch quality to these crucial channels, it creates a truly immersive and convincing home cinema audio experience.

Unmatched Power

Thanks to innovative advancements in power supply technology, the XPA-3 Gen 3 strikes a harmonious balance between power, quality, and cost-efficiency. It incorporates a regulated Switch Mode Power Supply (SMPS) and seamlessly integrates traditional Class A/B and Class H technologies, delivering a masterful fusion of quality and power. With a robust 300 watts per channel (490 watts into 4 ohms) in stereo mode, the XPA-3 Gen 3 is always ready to meet your power demands. Even when all three channels are in operation, this power amplifier still provides an impressive 275 watts per channel, ensuring compatibility with even the most demanding speakers.

Purity Complementing Power

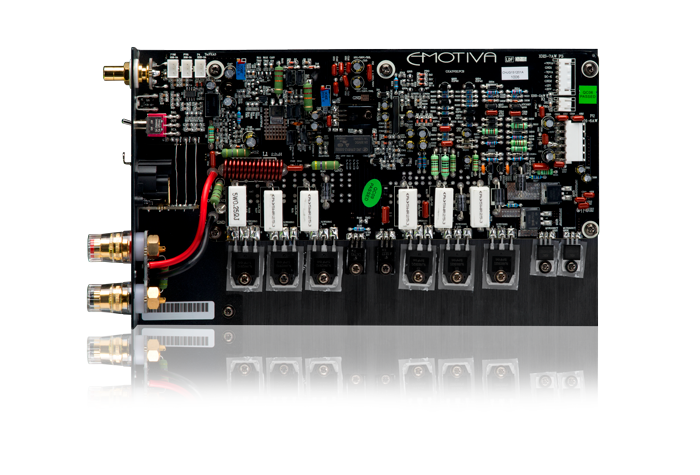

Setting it apart from digital-only power amplifiers, the XPA-3 Gen 3 features an analog Class A/B amplifier stage. This design preserves the emotional depth and musical fluidity that can be lost in many digital amplifiers.

Modular Construction for Future-Proofing

The modular construction of XPA power amplifiers allows for configuration from 2 to 14 channels. This not only helps manage costs but also provides the flexibility to upgrade the power amplifier as needed. You can return the amp to Emotiva's US base to have additional channels or higher-quality DR (Differential Reference) modules added, all without replacing your existing amplifier.

Versatile Connectivity

For optimal system flexibility, the XPA-3 Gen 3 offers both balanced XLR and unbalanced RCA phono inputs. To achieve the best results, pair it with an Emotiva processor and utilize the balanced XLR connections for enhanced synergy and heightened resistance to electrical interference. The RCA phono inputs offer a well-balanced sound, making this power amplifier suitable for use with AV processors from other brands as well.

Crafted in the USA

Designed and meticulously crafted in-house in the USA, the Emotiva XPA-3 Gen 3 upholds consistently high standards of quality and performance. Encased in a robust steel chassis, it not only delivers room-filling sound but also possesses the visual presence to match its sonic prowess.

Key Features

  • True audiophile-quality sound with a wideband, low distortion amplifier design
  • Fully modular construction using Top quality parts and construction
  • Heavy steel 4RU chassis with milled aluminum faceplate
  • Choice of balanced or unbalanced inputs
  • Audiophile-grade fault protection
  • Full five-year warranty
  • Remote trigger input and output
  • Solid machined gold-plated RCA input connectors
  • Gold plated five-way speaker binding posts with clear shields
  • Optimized Soft-Switch Class H™ power supply topology with Switched Mode Power Supply (SMPS)

Specifications

Specification Value
Power Output Per Channel
  • 300 watts RMS per channel; 20 Hz - 20 kHz; THD < 0.1%; into 8 Ohms
  • 550 watts RMS per channel; 20 Hz - 20 kHz; THD < 0.2%; into 4 Ohms
  • 800 watts RMS per channel; 20 Hz - 20 kHz; THD < 0.5%; into 2 Ohms
FTC Rated Power
  • 2 Channels Driven; 20 Hz - 20 kHz; THD < 0.1%
  • 300 watts RMS per channel; THD < 0.1%; into 8 Ohms (120 VAC line)
  • 490 watts RMS per channel; THD < 0.1%; into 4 Ohms (120 VAC line)
XPA Gen3 Power Per Channel: All Channels Driven
  • THD < 0.1%; into 8 Ohms
  • Two: 300 watts RMS per channel
  • Three: 275 watts RMS per channel
  • Four: 260 watts RMS per channel
  • Five: 250 watts RMS per channel
  • Six: 225 watts RMS per channel
  • Seven: 200 watts RMS per channel
Power Bandwidth (at rated power; 8 Ohm load) 20 Hz to 20 kHz (+ / - 0.1 dB)
Broad Band Frequency Response 5 Hz to 80 kHz (+ 0 / - 0.15 dB)
THD + noise < 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms
Signal to Noise Ratio (8 Ohm load)
  • > 117 dB; ref FTC rated power; unbalanced input (A-weighted)
  • > 91 dB; ref 1 watt; unbalanced input (A-weighted)
Minimum Recommended Load Impedance 4 Ohms; which equals one 4 Ohm load or two paralleled 8 Ohm loads
Damping Factor (8 Ohm load) > 500
Speaker Output Connections Audiophile grade, gold-plated, 5-way binding posts
Power Supply High efficiency, audiophile grade, Switch Mode Power Supply (SMPS)
Input Sensitivity (for rated power; 8 Ohm load) 1.5 V
Gain 29 dB
Power Requirements Between 100 VAC and 250 VAC @ 50 / 60 Hz (automatically detected)
Protection The XPA Gen3 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions
Physical Properties
  • Input Connections: Unbalanced (RCA); balanced (XLR); one each per channel independently selectable
  • Input Impedance: 33 kohms (balanced); 23.5 kohms (unbalanced)
  • Trigger: Trigger Input: 5 - 12 V (AC or DC); <10 mA input current required
  • Trigger Output: 12 VDC; can drive any load up to 120 mA
  • Front Panel Controls and Indicators: Standby; push button (halo ring changes colour to indicate Standby or On)
  • Status LEDs; one per channel; blue
  • Status LEDs change to red to indicate a fault condition

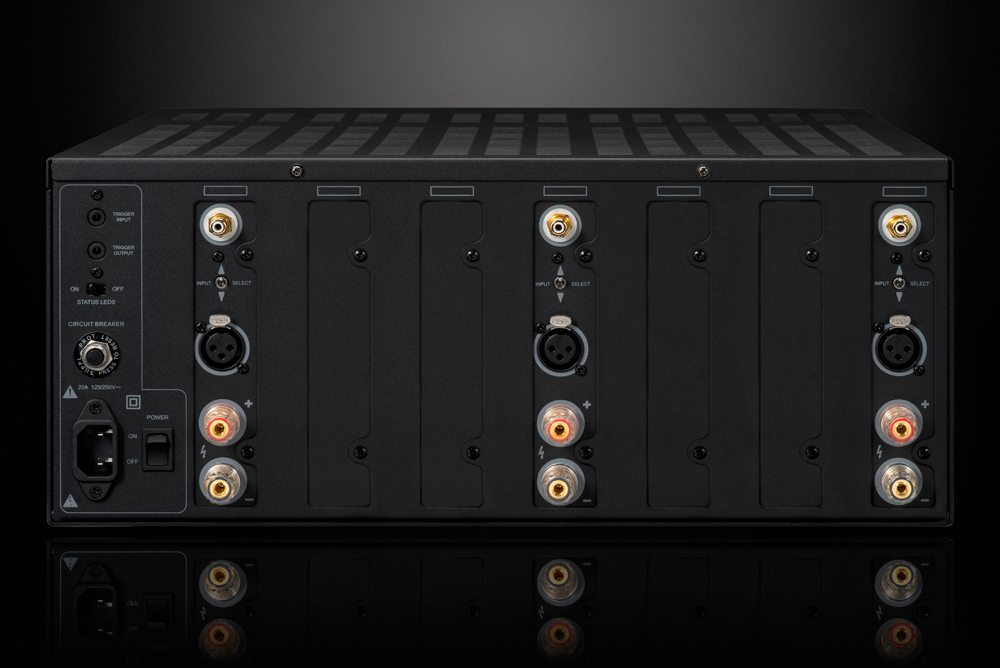

  • Rear Panel Controls: AC Power switch; rocker switch (switches AC main power)
  • Status LEDs switch; disables front panel Status LEDs and dims
  • Standby button halo
  • Input selector switches (one per channel); metal toggle switches select between balanced and unbalanced inputs
  • Circuit Breaker; press button to reset circuit breaker
  • Dimensions: 17” wide x 8” high x 19” deep (unboxed; including feet); 17” wide x 7” high x 19” deep (unboxed; without feet); 24-1/2” wide x 12” high x 24-3/4” deep (boxed)
  • Weight: 39 lbs (unboxed) For boxed weight, add 5 lbs

What's in the Box
