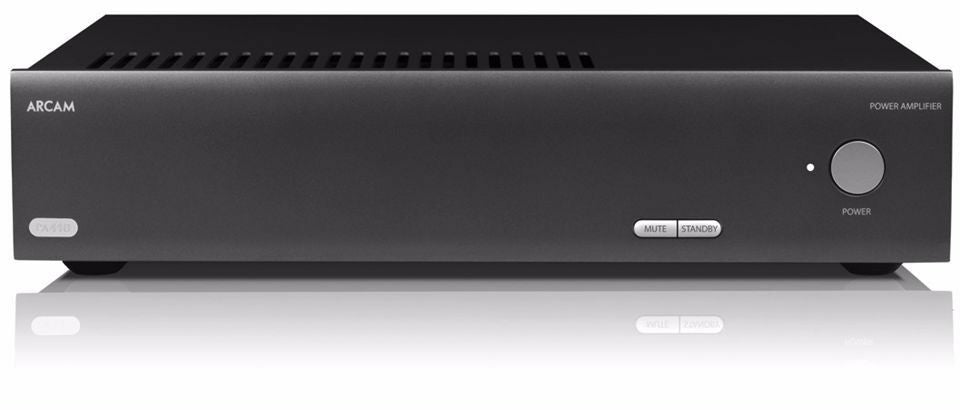

Arcam PA410 4 Channel Power Amplifier
Couldn't load pickup availability
-
Free & Next-Day Delivery Available
-
Hassle-Free Returns Within 30 Days
Arcam PA410 4 Channel Power Amplifier
Description
Description
Power Amplification with Arcam PA410
The Arcam PA410 is a versatile 4-channel power amplifier designed for creating a home cinema experience like no other.
Enhance Your Arcam AVR with Dolby Atmos and DTS:X
This 4-channel power amp serves as an excellent upgrade for Arcam's AVR5, AVR10, AVR11, AVR20, AVR21, AVR30, AVR31 AVRs, and potential future models equipped with pre-outputs. Connect it via RCA phono leads to expand your speaker setup for a more immersive audio experience. With the PA410, you can achieve Dolby 7.1.4, utilizing seven surround speakers and four ceiling speakers for a truly enveloping sound. Other surround sound formats, including DTS:X, also benefit from this expanded speaker array.
Unleash the Power for 9.1.6 Surround Sound
Take your surround sound experience to the next level with the AVR20, AVR21, AVR30, and AVR31 by adding two PA410 power amplifiers. This setup allows for sensational 9.1.6 surround sound, with nine speakers around the room and six in the ceiling. This configuration is ideal for larger rooms, delivering the most immersive sound possible.
Unlock the Full Potential of Your AV40 or AV41
Arcam's AV40 and AV41 models are AV processors without built-in amplification. You can pair them with a range of PA410 power amplifiers or combine PA410 power amps with other Arcam power amps to achieve your desired channel configuration. The modular design not only offers flexibility but also ensures a perfect synergy among Arcam products for a cohesive amplification system.
Impressive Stereo Amplification
The PA410 also excels as a high-quality stereo amplifier. When switched to bridged mode, it provides 60 watts per channel (90 watts at 4 ohms), making it suitable for most room sizes. Simply add your preferred pre-amp or source with built-in volume control, and you're ready to enjoy exceptional stereo sound.
A Sound Choice for Audiophiles
Built around an efficient Class AB amp design, the PA410 effortlessly delivers the renowned Arcam sound quality—smooth, powerful, and natural. The toroidal power supply and paralleled transistor output stages ensure ample power. The acoustically damped chassis and high-quality components work together to minimize distortion.
Perfect for Professional Installations

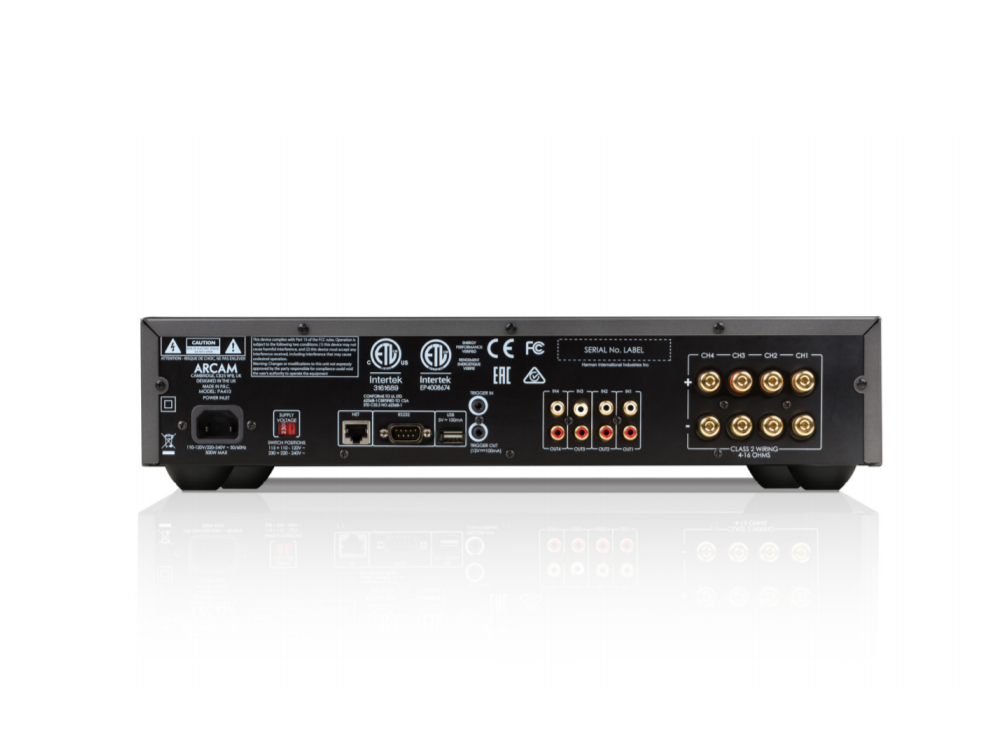

Equipped with a wide range of connectivity options, the PA410 is perfect for professional installations. RS232 control and 12V in/out triggers simplify integration with sophisticated systems. Firmware updates can be easily performed via USB or Ethernet connections, ensuring the amplifier always performs at its best.
Key Features
Key Features
Specifications
Specifications
| Continuous Power Output at 0.2% THD per Channel | |
|---|---|
| Four Channels Driven, 4Ω / 8Ω, 20Hz – 20kHz | 70W / 50W |
| Two Channels Driven, 4Ω / 8Ω, 20Hz – 20kHz | 90W / 60W |
| Harmonic Distortion, 80% Power, 8Ω at 1kHz | 0.003% |
| Inputs | |
| Input Sensitivity 50W / 8Ω | 600mV RMS |
| Signal/Noise Ratio (A-wtd) 50W / 8Ω | 105dB |
| Input Impedance | 10kΩ |
| Frequency Response | 20 - 20kHz +/-0.05dB |
| General | |
| Mains Voltage | 110–120V or 220–240V, 50–60Hz |
| Power Consumption (Maximum) | 700W |
| Power Consumption (Idle, Typical) | 90W (Thermal Dissipation Approx. 340 BTU/hour) |
| Power Consumption (Standby) | <0.5W |
| Dimensions W x H x D (Including Feet, Control Knob, and Speaker Terminals) | 433x325x105mm |
| Weight (Net) | 10kg |
| Weight (Packed) | 11.5kg |
